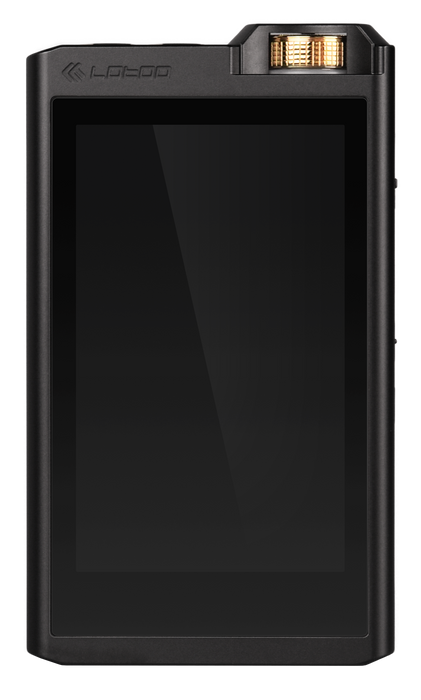

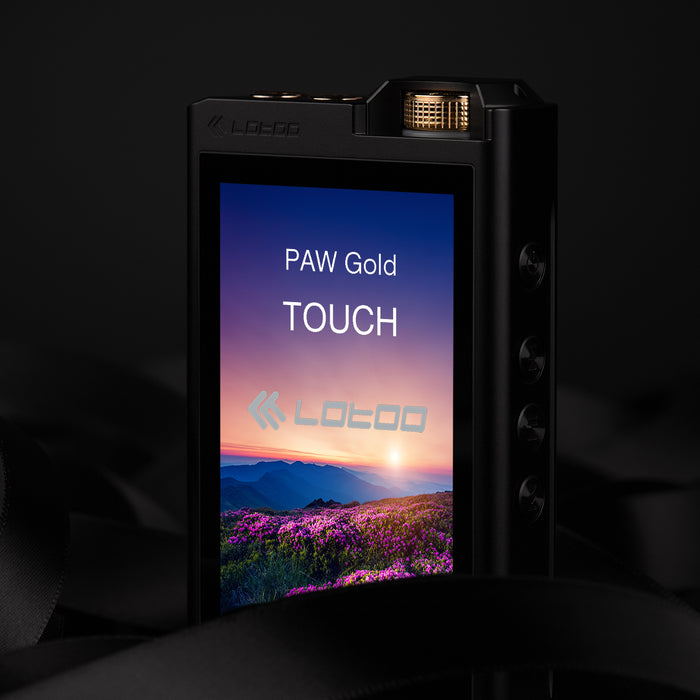

    Lotoo Paw Gold Touch Reference Portable Hi-Fi Player (English Version)

    Lotoo PAW Gold Touch Reference Portable Hi-Fi Player (English Version) (Like New)

    $ 2,299.00 $ 3,199.00

    Lotoo PAW Gold Touch Reference Portable Hi-Fi Player, with the flagship DAC chip AKM4497 and audio-oriented system architecture, PAW Gold Touch is giving more natural sound for its reference level design concept



    Product Highlights:

    - 3.77" IPS Touch Screen
    - Lotoo OS (NOT Android)
    - Bluetooth 4.1 with LDAC
    - 4.4mm Balanced Output
    - Power Output: 500mW at 32Ohm load
    - USB DAC (Fully Asynchronous)
    - USB-C Port, USB 3.1 Protocol
    - Memory: SD Card upto 2TB, Supports UHS II
    - 10+ Hrs Battery Life



    Specifications:

    Body:

    - Dimensions: 119mm x 68.6mm x 21mm
    - Weight: 275g

    Screen:
    - Touchscreen
    - Size: 3.77" IPS Display
    - Resolution: 800 x 480
    - Gorilla Glass (Std 5)
    - DLC Coating for Added Strength
    - AF (Anti-Fingerprint) Coating

    Battery:
    - Playback Time: 10+ Hrs
    - Capacity: 5500 mAH

    USB:
    - USB-C with upto USB 3.1 protocol
    - USB DAC Functionality
    - USB Charging

    Wireless:
    - Bluetooth 4.1 with LDAC support
    - WiFi b/g/n (Purpose Still Unknown)

    Memory:
    - SD Card
    - Support Upto 2TB UHS II

    Software:
    - Lotoo OS (Not Android or Linux)
    - PMEQ II with 5 Filters Per Setting
    - ATE

    Audio:
    - DAC Chip: AKM 4497EQ
    - Support upto PCM 768kHz and DSD512

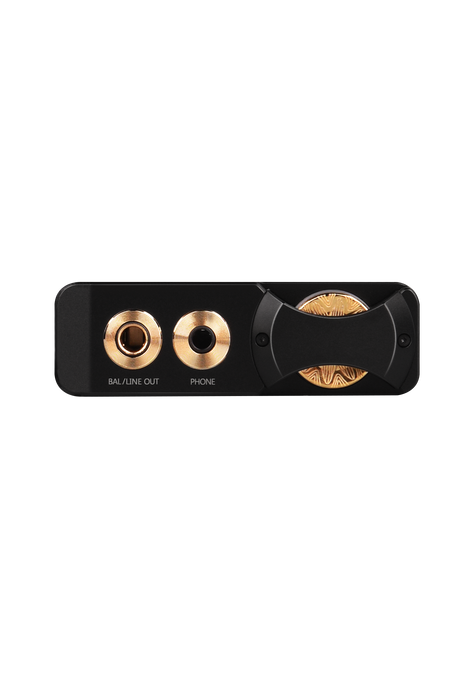

    - Headphone Out - 4.4mm Balanced & 3.5mm Single Ended
    - Line Out - 4.4mm
    - Output Power: 500 mW per Channel at 32 Ohms

    4.4mm Balanced Headphone Out:
    - Frequency Response: 20 - 20,000 kHz (+0.008/-0.34 dB)
    - THD+N: 0.00015%
    - SNR: 127 dB
    - Channel Separation: -126 dB
    - Dynamic Range: 127 dB
    - High Gain: +14.4 dBu
    - Low Gain: -10 dBu

    4.4mm Line Out:
    - Frequency Response: 20 - 20,000 kHz (+0.008/-0.34 dB)
    - THD+N: 0.00015%
    - SNR: 127 dB
    - Channel Separation: -126 dB
    - Dynamic Range: 127 dB
    - Gain: +14.4 dBu

    3.5mm Singel Ended Headphone Out:
    - Frequency Response: 20 - 20,000 kHz (+0.006/-0.38 dB)
    - THD+N: 0.00045%
    - SNR: 123 dB
    - Channel Separation: Unknown
    - Dynamic Range: 123 dB
    - High Gain: +16 dBu
    - Low Gain: -9 dBu
