    Cayin CS-55A (EL34/KT88) - MusicTeck

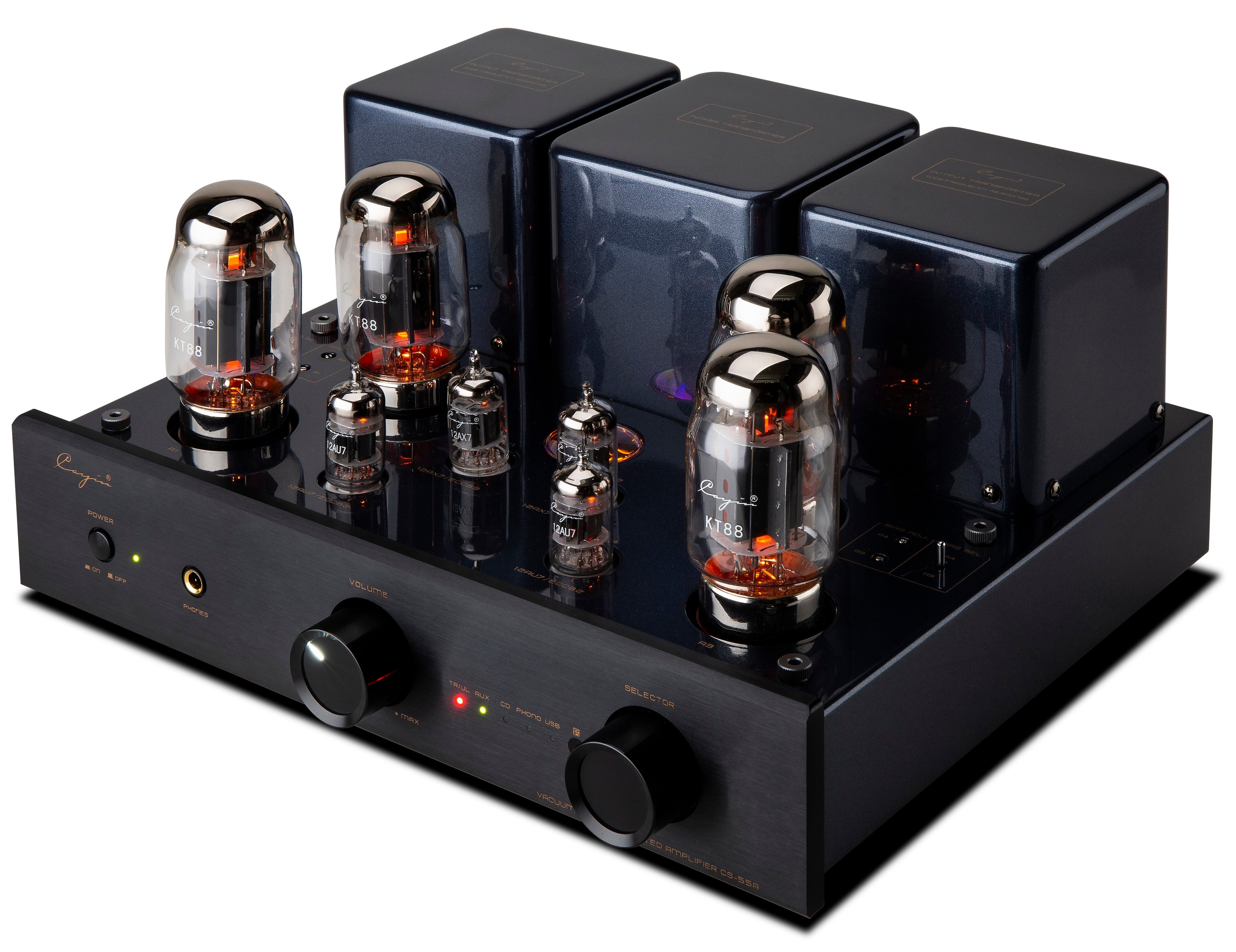

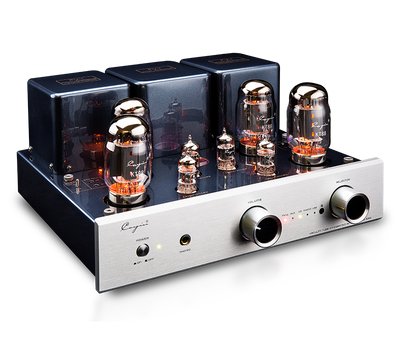

    Cayin CS-55A (EL34/KT88)

    $ 1,999.00

    Cayin CS-55A

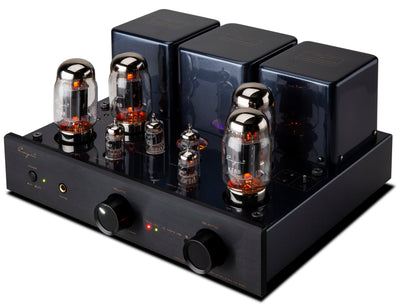

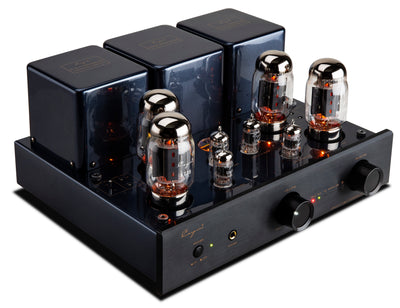

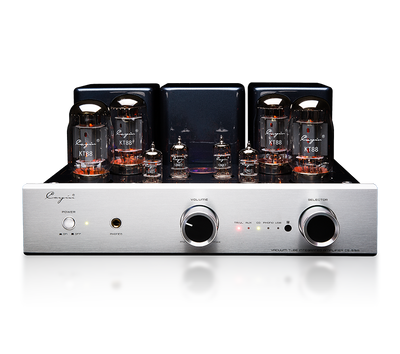

    • The CS-55A is the most recent advancement in tube amplifier technology created by Cayin. This state-of-the-art machine boasts forty watts per channel by using 4 KT88 tubes in Class AB ultra-linear push pull amplification. The CS-55A consists of four pairs of input: one Phono, a USB port, and two line inputs giving a wide range of options for any listener.

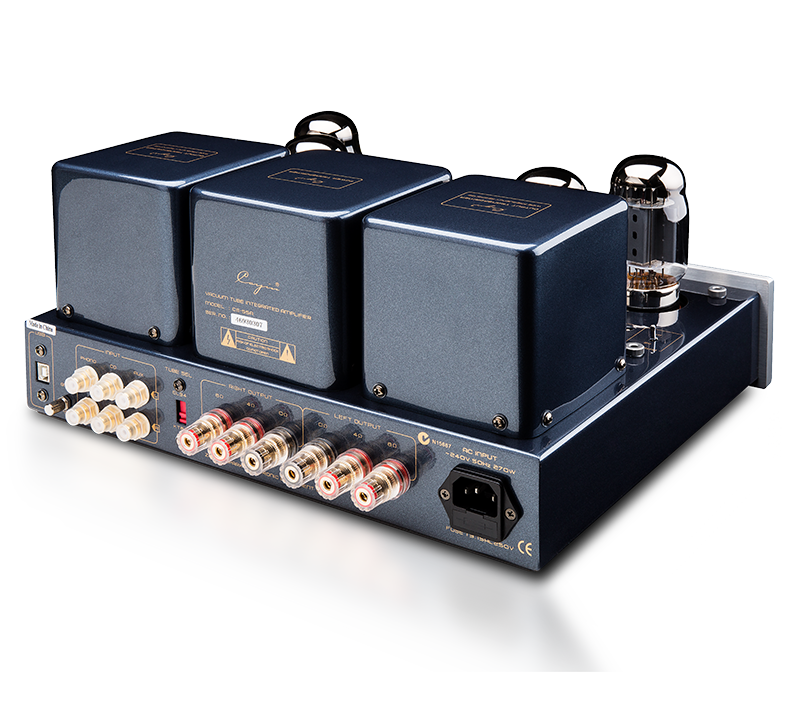

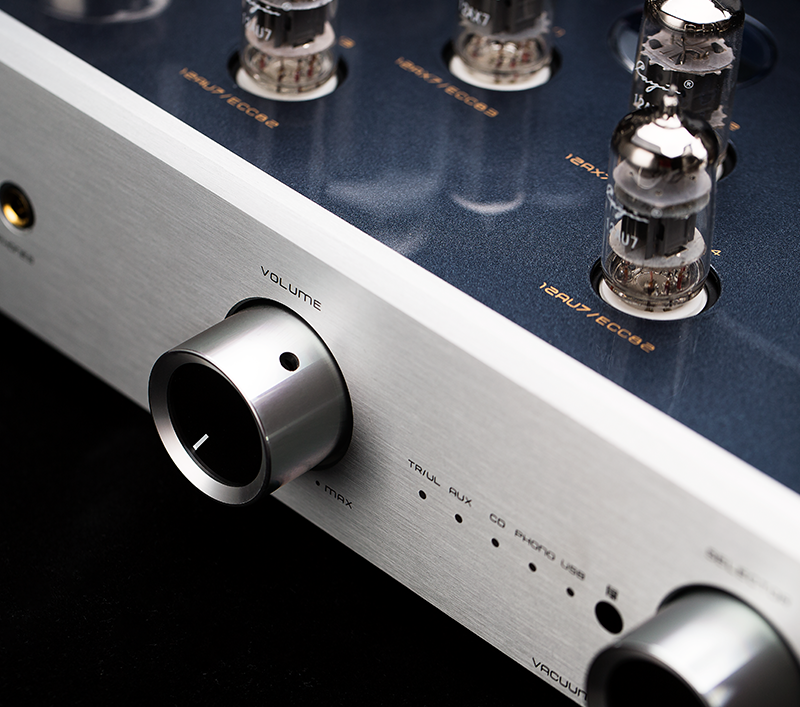

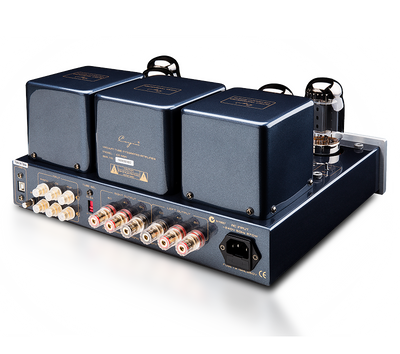

    • The CS-55A comprises of a fully anodized aluminum front, a vented chassis with a gorgeous finish, the finest hand-made point-to-point wiring, and a soft-start circuit to enhance the life of the toroidal power transformer and output transformers. Combined with audio grade capacitors, carbon film resistors, and ceramic tube sockets, this is one amplifier every audiophile should have in his/her collection. Speaker output impedance can be swapped between 4 ohms and 8 ohms. Similarly to the A-88T, the CS-55A comes with a handy remote control.
    • Transform your music system! Extraordinary value and performance best describes the Cayin Audio CS55A Integrated amplifier. As the centre piece of any system, the unit is at home with both analogue or digital formats. CS-55A includes a built in MM phono section to accommodate turntables and a built-in high resolution DAC for use with computers. Via the 2.0 USB input, the DAC is capable of covering digital audio signals up to 32bit | 384kHz. This combination of a high end DAC and tubes makes for a rich and detailed soundstage.

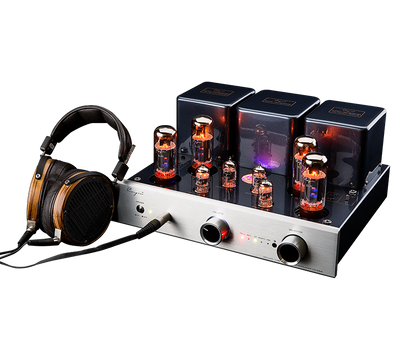

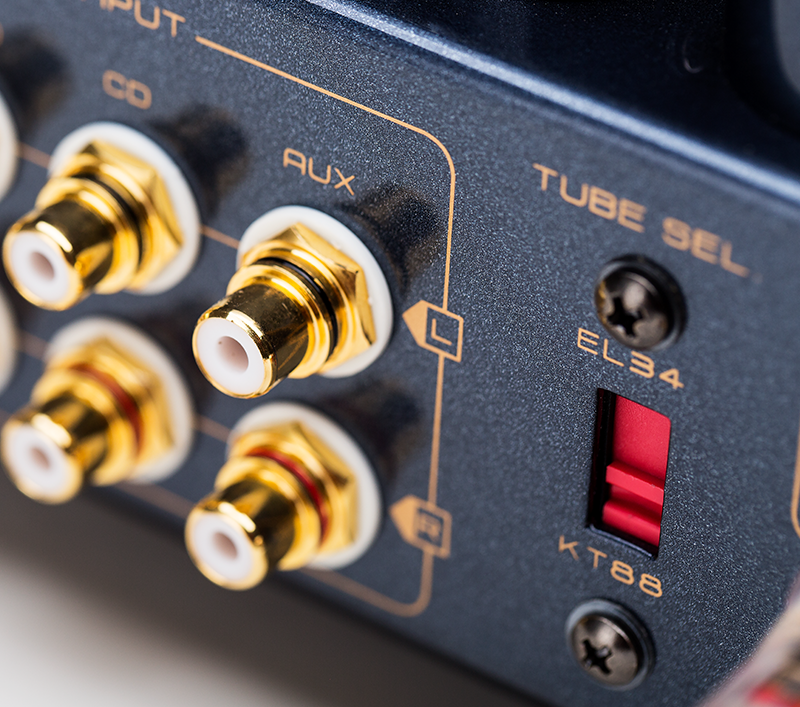

    • The output stage can be switched between Triode and Ultra Linear mode and either KT88 or EL34 tubes can be used for the maximum amount of flexibility. A headphone jack on the front completes the unit and makes this one of the most versatile and compelling products on the market for 2016.

    SPECIFICATION

    Model

    CS-55A

    Power Output

    KT88: 22W Triode – 40W Ultralinear
    EL34: 20W Triode – 38W Ultralinear

    Frequency Response

    KT88: 5Hz – 44kHz (-3dB)
    EL34: 5Hz - 48kHz (-3dB)

    Input Terminal

    USB, CD, Phono, Aux

    Bezel

    Silver or Black

    Power Consumption

    <270w

    S/N Ratio

    92dB

    Input Sensitivity

    KT88:  270mV
    EL34: 280mV

    Dimension

    360mm × 334mm × 180mm

    Net Weight

    17kg

    Output Impedance

    4Ω,8Ω

    Input Impedance

    100KΩ

    Tube KT88: 4 x KT88, 2 x 12AU7/ECC82, 2 x 12AX7/ECC83
    EL34: 4 x EL34, 2 x 12AU7/ECC82, 2 x 12AX7/ECC83
    USB DAC
    Word length 16 - 32bits Sampling rate 44.1kHz,48kHz,88.2kHz,96kHz,176.4kHz,192kHz,352.8kHz,384kHz
    Operating System Windows XP®, Windows Vista®,Windows 7® , Windows 8®, Mac OS(10.6.3 and above)
    Compatible with Audio Class 1.0 and Audio Class 2.0
    Phono
    Input Sensitivity 3mV Input  Impedance 47kΩ
    RIAA Errors Lower than ±0.25dB  Total Gain 40dB

    S/N ratio

    68dB
