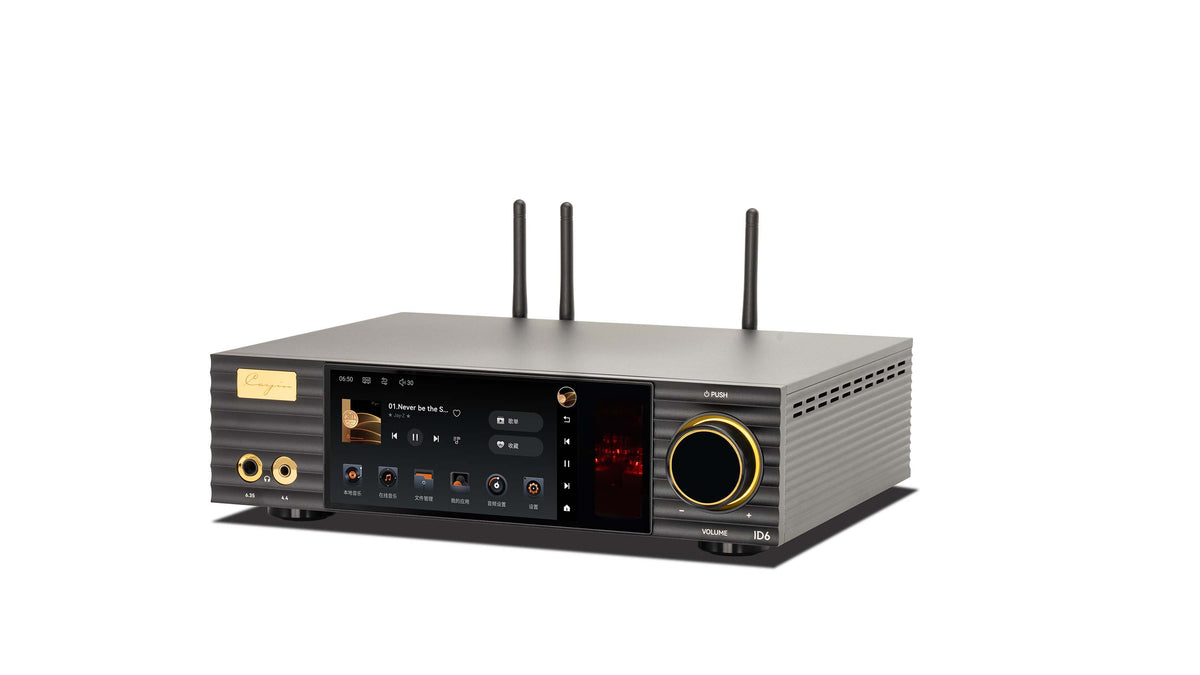

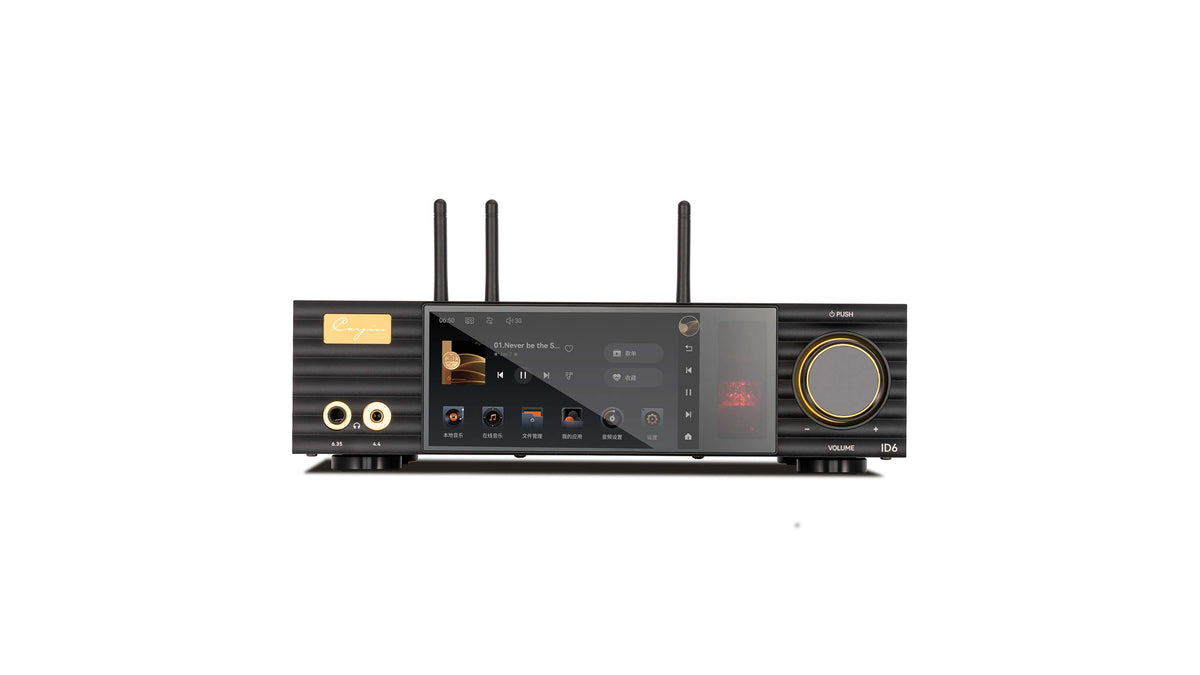

Cayin ID6 Streamer, DAC & Headphone Amplifier

Cayin ID6 Streamer, DAC & Headphone Amplifier

Tube Sound Reimagined.

For more than three decades, vacuum-tube audio has been one of Cayin’s defining strengths. The Cayin ID6 brings that experience into a modern all-in-one desktop audio platform, combining network streaming, high-resolution digital playback, DAC functionality, preamplifier and line outputs, and powerful headphone amplification in one compact chassis.

Designed for listeners who want the flexibility of a modern streaming system without giving up the unmistakable musical character of tube amplification, the ID6 combines three instantly switchable timbres, a customized Android 14 platform, dual-mono ESS decoding, a fully discrete balanced headphone stage, expandable storage, and extensive digital connectivity.

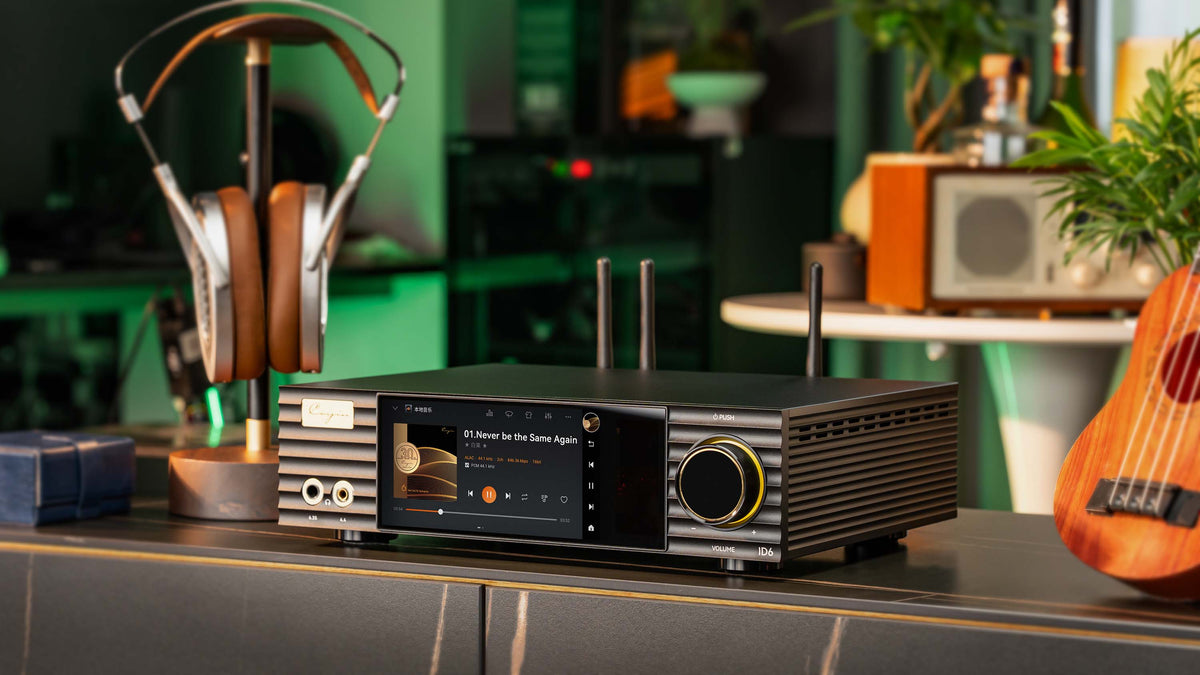

Whether used as a complete headphone system, a digital source for an existing Hi-Fi setup, or the control center of a compact two-channel system, the Cayin ID6 is designed to be an exceptionally versatile centerpiece.

---

Highlights

• Three Selectable Timbres: Classic Tube, Modern Tube, and Solid-State
• 12AU7 Tube Architecture: Classic 12AU7 dual-triode tubes cascaded with MOS-FETs
• Customized Android 14: Powered by the Rockchip RK3576 octa-core processor
• High-Resolution Playback: Up to PCM 32-bit/768kHz and Native DSD512
• Dual ES9082Q DACs: One DAC dedicated to each channel in MONO mode
• Fully Discrete Balanced Headphone Amplifier: Four-channel balanced topology with selectable Class A and Class AB operation
• Up to 4.0W + 4.0W: Powerful balanced headphone output into 16Ω
• XMOS XU316 USB Audio: 16-core USB processor supporting UAC2.0 and UAC1.0
• Expandable Internal Storage: Dedicated M.2 NVMe 2280 SSD bay
• 6-inch FHD+ Touch Display: 1080 × 2160 display with spectrum and VU-meter visualization
• Flexible Networking: Dual-band Wi-Fi, wired Ethernet, and Qualcomm QCC5125 Bluetooth
• Extensive Connectivity: XLR, RCA, HDMI I²S-LVDS, coaxial, optical, USB DAC, HDMI ARC, USB HOST, and Ethernet
• Cayin Control App: Remote timbre switching, playback configuration, and device management

---

Three Timbres, One Platform

The ID6 gives you three distinctly different sound presentations in a single component. Switch between tube and solid-state timbres to match your headphones, music, and listening preferences.

Timbre	Character
Classic Tube	Warm, smooth, relaxed, and easy to listen to, with delicate and engaging vocals.
Modern Tube	Expansive soundstage, incisive resolution, and tight, powerful bass.
Solid-State	Precise and composed, with maximum resolution and strong detail retrieval.

Classic 12AU7 Tube Architecture

Drawing on Cayin’s decades of vacuum-tube audio experience, the ID6 uses classic 12AU7 dual-triode tubes cascaded with MOS-FETs to create its two tube timbres, alongside a separate Solid-State timbre.

A dedicated tube viewing window puts the warm filament glow on display, bringing Cayin’s tube heritage into the ID6’s modern desktop design.

Android 14 Streaming Platform

The ID6 runs a deeply customized Android 14 system powered by the Rockchip RK3576 octa-core processor, featuring four Cortex-A72 cores running at up to 2.2GHz and four Cortex-A53 cores running at up to 2.0GHz.

The platform is designed for responsive streaming-app operation, fast library scanning, smooth multitasking, and high-resolution local playback.

Bit-Perfect High-Resolution Playback

Optimized low-level drivers and Cayin’s audio framework provide native SoC USB Audio and I²S bit-perfect transmission paths. The ID6 supports digital audio up to PCM 32-bit/768kHz and Native DSD512, helping preserve signal integrity throughout the digital chain.

Dual ES9082Q DACs in MONO Mode

Rather than sharing a single DAC between channels, the ID6 uses two ESS ES9082Q DACs operating in MONO mode, with one DAC dedicated to each channel.

This creates physically independent left and right decoding paths designed to improve channel separation, signal-to-noise ratio, dynamic range, and low-level detail resolution.

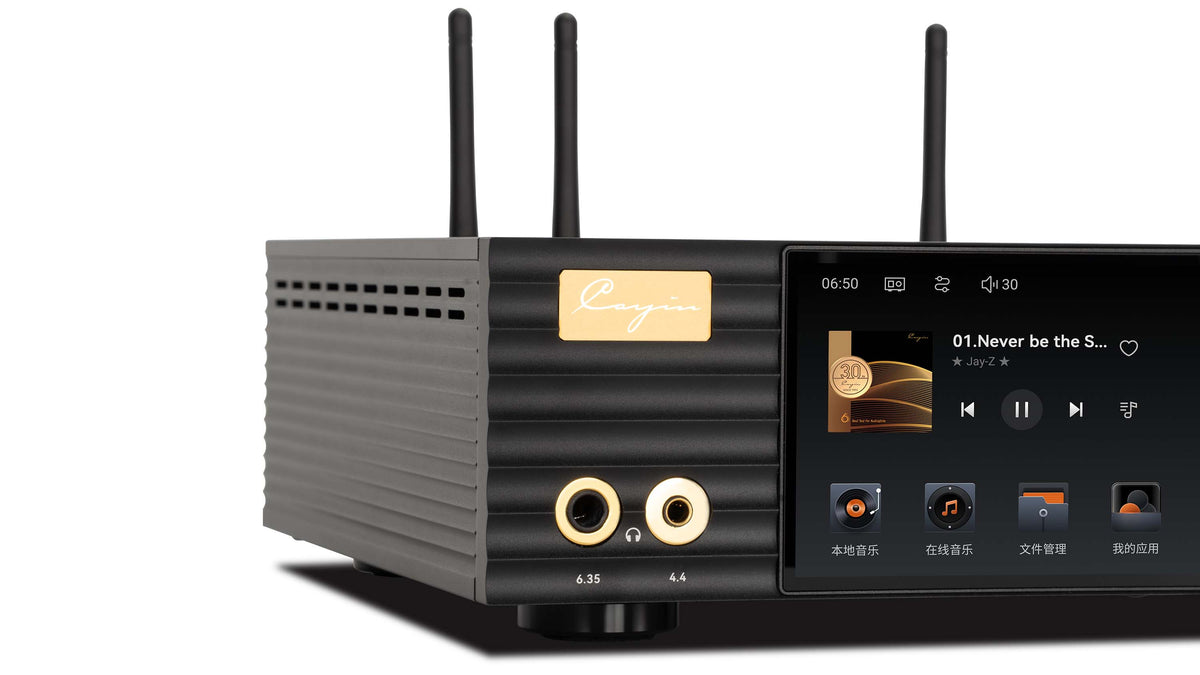

Fully Discrete Balanced Headphone Amplifier

The ID6 features a four-channel, fully balanced and fully discrete headphone amplifier topology using Nexperia audio-grade BJT devices for current amplification and drive.

Listeners can select between Class A and Class AB operation, while a DC-Servo circuit helps control DC offset. Balanced headphone output reaches up to an impressive 4.0W + 4.0W into 16Ω.

XMOS XU316 USB Audio

A 16-core XMOS XU316 processor handles USB audio and supports both UAC2.0 and UAC1.0 for broad compatibility with Windows, macOS, Android, Linux, and other mainstream systems.

Asynchronous transfer and precision clock re-clocking are used to help suppress digital jitter and source-related noise.

Flexible Storage & Networking

Access your music from streaming services, network libraries, USB storage, or an internally installed SSD. The ID6 supports dual-band 2.4GHz/5GHz Wi-Fi, wired Ethernet, Qualcomm QCC5125 Bluetooth, USB flash drives, external hard drives, card readers, and a dedicated M.2 NVMe 2280 SSD bay.

Independent Digital & Analog Power Supplies

A toroidal transformer anchors the ID6’s linear power architecture, with separate power-supply sections for the digital and analog circuitry.

DC-DC regulation, low-noise linear regulators, and polymer molybdenum filter capacitors are used to suppress ripple and circuit noise.

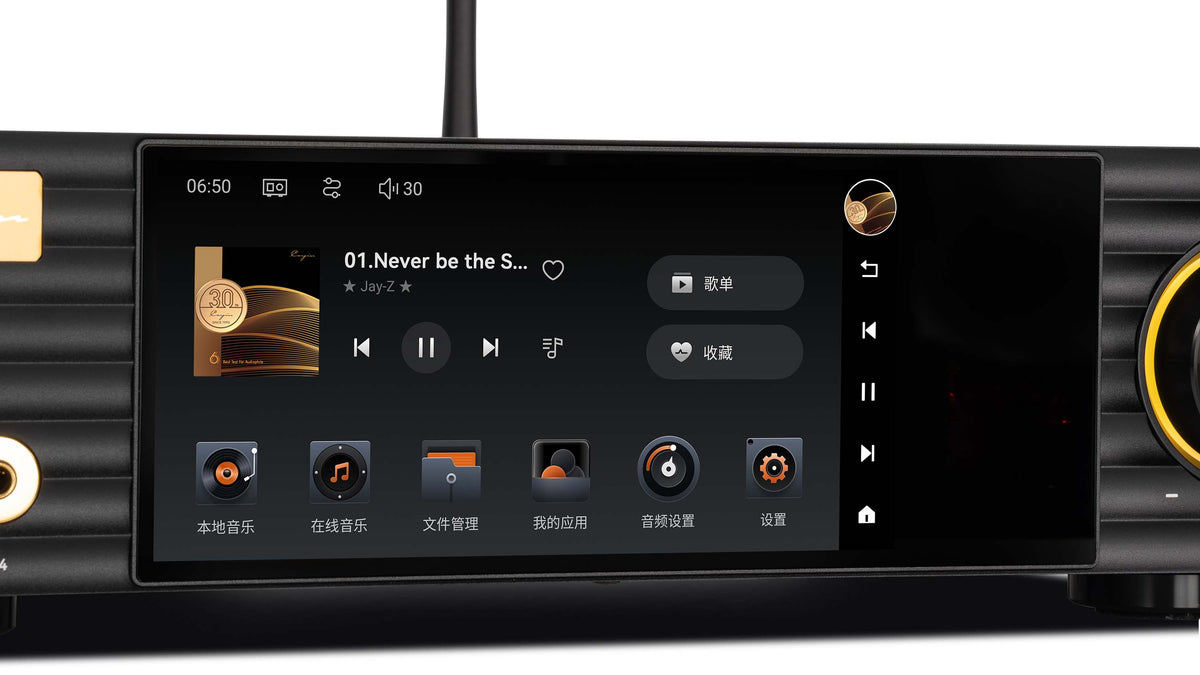

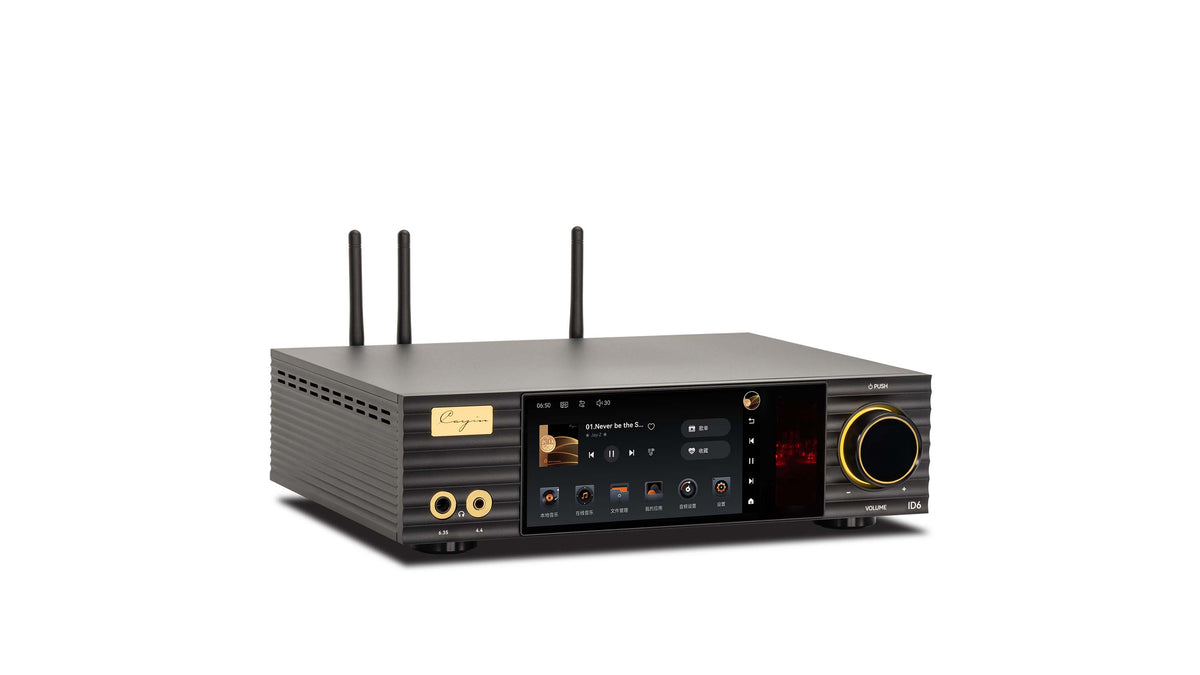

6-Inch FHD+ Touch Display

The front panel features a 6-inch 1080 × 2160 FHD+ touchscreen with a custom landscape interface and multi-touch operation.

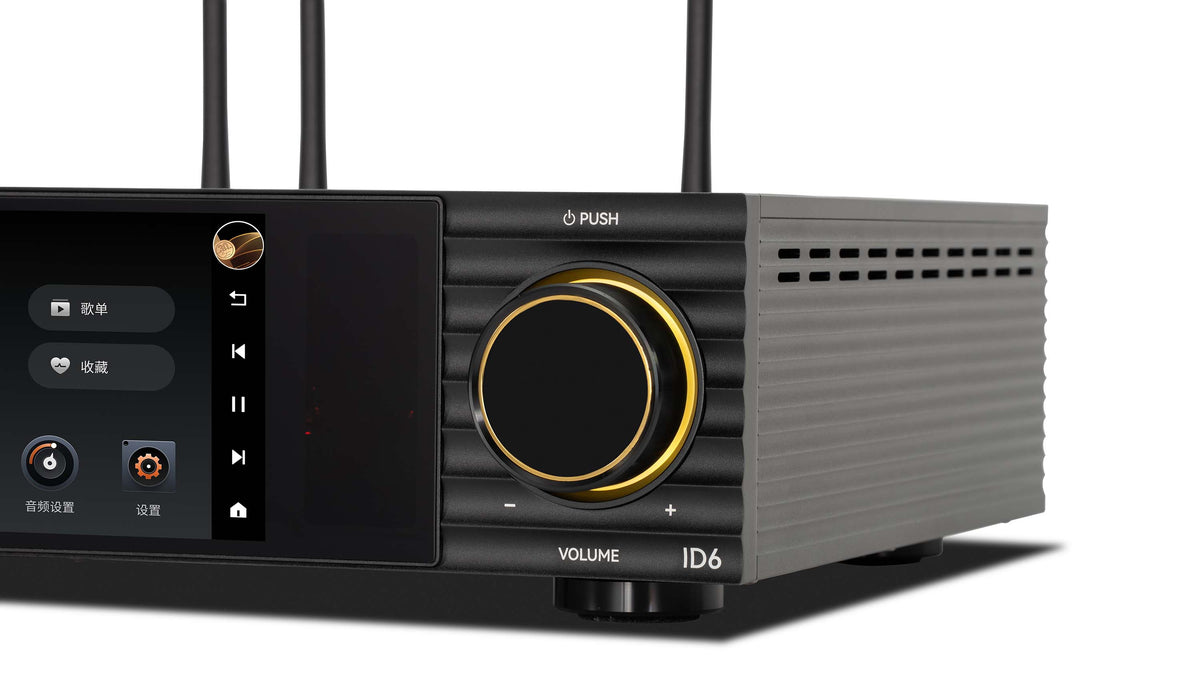

Dynamic spectrum visualization and a real-time VU-meter provide an engaging visual experience, while an illuminated ring surrounding the volume control provides a clear visual indication of track format.

Cayin Control App

The ID6 works with the Cayin Control App for convenient timbre switching, playback configuration, and device management. App functionality will continue to expand through future firmware updates.

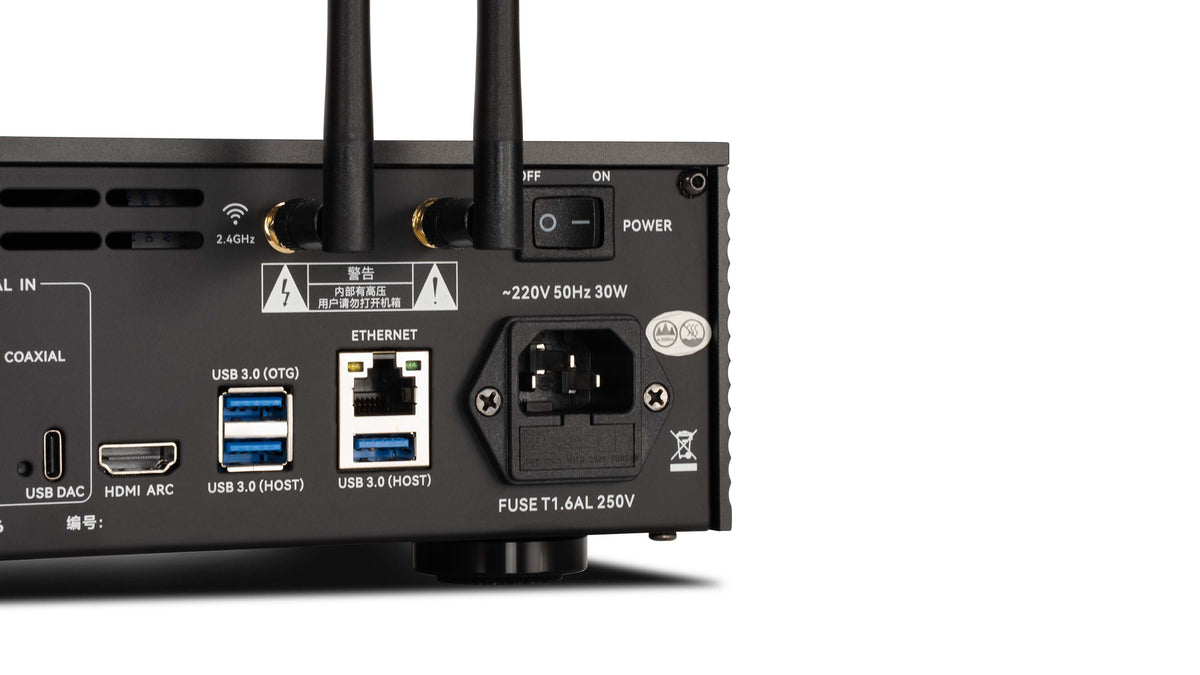

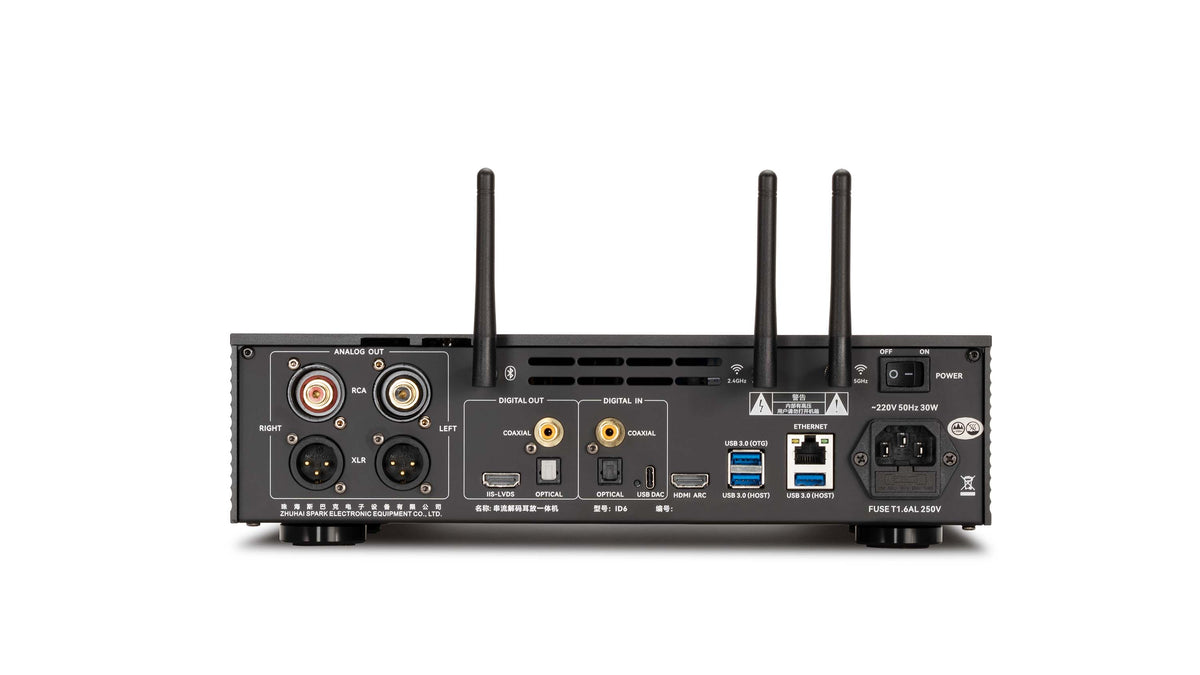

Connectivity & System Integration

The ID6 is designed to serve as the central hub of a desktop or full-size audio system. In addition to headphone playback, it can operate as a DAC, line-level source, or volume-controlled preamplifier.

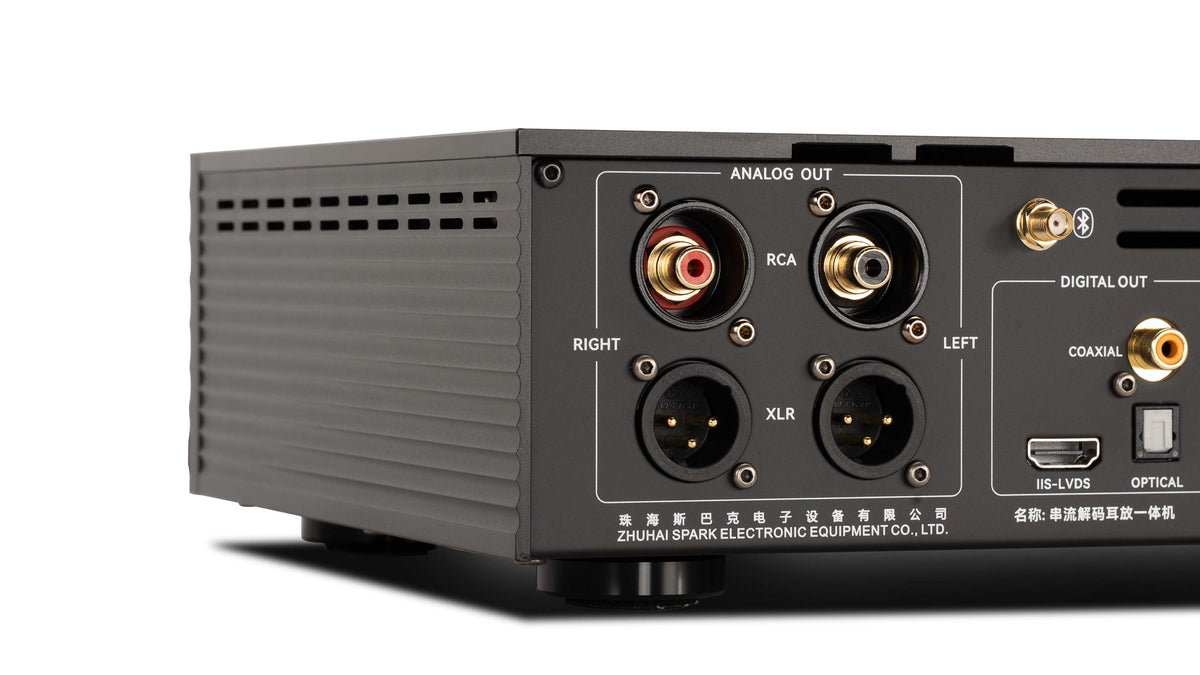

• Balanced XLR line / preamp output
• Single-ended RCA line / preamp output

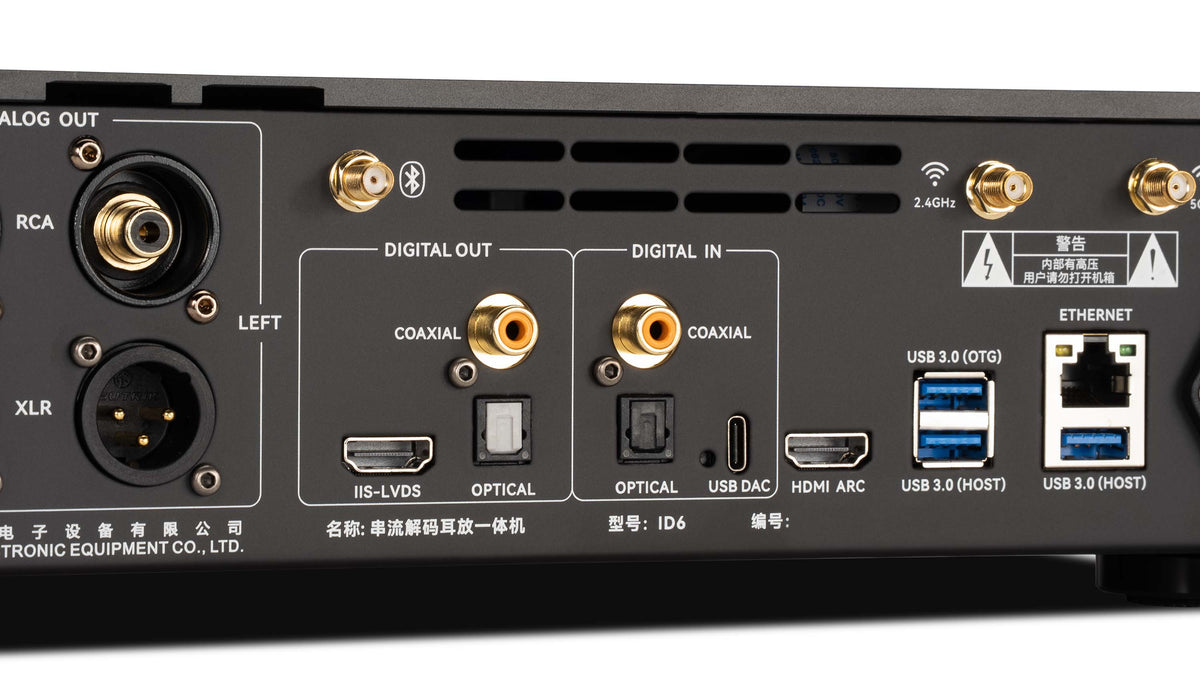

• HDMI I²S-LVDS digital output
• Coaxial digital input and output
• Optical digital input and output
• USB DAC input
• HDMI ARC multimedia input
• USB 3.0 OTG / external storage / PC transfer
• Dual USB HOST ports for storage / USB Audio output
• Wired Ethernet
• Separate Wi-Fi and Bluetooth antenna terminals

---

Key Audio Specifications

Preamp / Line Output

Output Mode	Balanced XLR	Single-Ended RCA
PRE OUT (Volume Controlled)	12.0Vrms @ 47kΩ	6.0Vrms @ 47kΩ
LINE OUT (Fixed Level)	4.0Vrms @ 47kΩ	2.0Vrms @ 47kΩ

---

A Complete Desktop Audio Center

The Cayin ID6 brings together Cayin’s long-established vacuum-tube tuning expertise and a modern high-resolution digital platform. Three selectable timbres let you move from the warmth and intimacy of Classic Tube to the spacious, controlled presentation of Modern Tube or the precision and detail of Solid-State playback.

With dual ES9082Q DACs, XMOS XU316 USB audio, selectable Class A / Class AB headphone amplification, expandable M.2 NVMe storage, Android 14, and extensive digital and analog I/O, the ID6 can serve as an all-in-one source for both headphone and two-channel systems.

MSRP: $1,899 USD

Note: App functions are still being optimized. The Android version of the Cayin Control App is available from Cayin’s official website, while the iOS version is available from the App Store. Product images in the source launch document show prototype units. Specifications and technical information are subject to change without prior notice.
