NOSTALGIA AUDIO CAMELOT
Camelot is a tribrid IEM, consisting of 2 huge 10mm Dynamic Drivers, 4 Balanced Amateurs and 4 Electrostatic Drivers. Not only the shell, the internal modular of Camelot is designed to be fully built by 3D Printing, to keep every Camelot performing the same sound quality to high-end audiophiles. Camelot has 5-way crossover design, one DD for ultra-low, one DD for low, 2 BA for mid, 2BA for high and 4 EST for ultra high frequencies. With XBS (Extreme Bass System) and SFD (Spiral Flow Device) technology, Camelot provides a detailed, great tonal balance and smooth vocals for audiophiles who pursue perfection.
- 10 Individual Drivers, Tribrid Design
- 2 Dynamic Drivers - Sub-Bass, Bass
- 4 Balanced Armateurs - 2 Mid, 2 High
- 4 Electrostatic Drivers - 4 Ultra-High
- 5-Way Crossover Design
- Extreme Bass System
- Spiral Flow Device
- Impedance: 13 Ohms @ 1kHz
- Frequency Response: 15 Hz - 40kHz
- Sensitivity: 114dB @ 1kHz, 1mW
Bespoke Avalon High Purity OFC and OCC Copper Cable, Multiple Strand Design
- 4 Strands 22 AWG High Purity OFC and OCC copper
- Multiple strand design
- Customized flexible nylon wrapping
- Rhodium plated high quality 4.4 mm balanced termination
Our self-designed 10mm Dynamic Drivers are constructed with N52 Neodymium Magnet and a PEN diaphragm. Polyethylene naphthalate, one of the ester functional groups of polyester, is easy to drive and provide a quick and deep bass with stunning performance.
Camelot uses four individual Balanced amateurs on mid and high frequencies, our SFD system is designed to reduce losses from the tube curvature, presenting a smooth, sweet vocal also detailed highs and extensions.
We used four second generation electrostatic drivers in Camelot. A voltage transformer has been installed into the iem so the EST driver doesn’t need to have an external power to driver the unit. EST drivers provide detailed highs and airy sounding, also performing an airy sounding.
XBS - Extreme Bass System
Consisting of two 10mm PEN Dynamic Drivers and a brass made chamber, the brass made chamber is used to reduce the Acoustic Resonance and provides less space usage and maximize the bass performance.
SFD - Spiral Flow Device
The SFD is specially designed for enhancing the mids performance in Camelot. A helical formation incorporated as a ridge serves to induce a spiral pattern of flow, reducing loss caused by the curvature of the nozzle
Fully 3D Print Design
Camelot is our first fully 3D print design IEM. Not only the shell, we designed a 3D printed internal chamber for all those drivers to minimize the size and provide more referencing sound. Furthermore, a hidden venting design has been used on Camelot, a customized cm plug with vent holes in order to solve the air pressure from the two Dynamic drivers.
- Camelot Custom In-Ear Monitors
- Avalon High Purity copper Cable

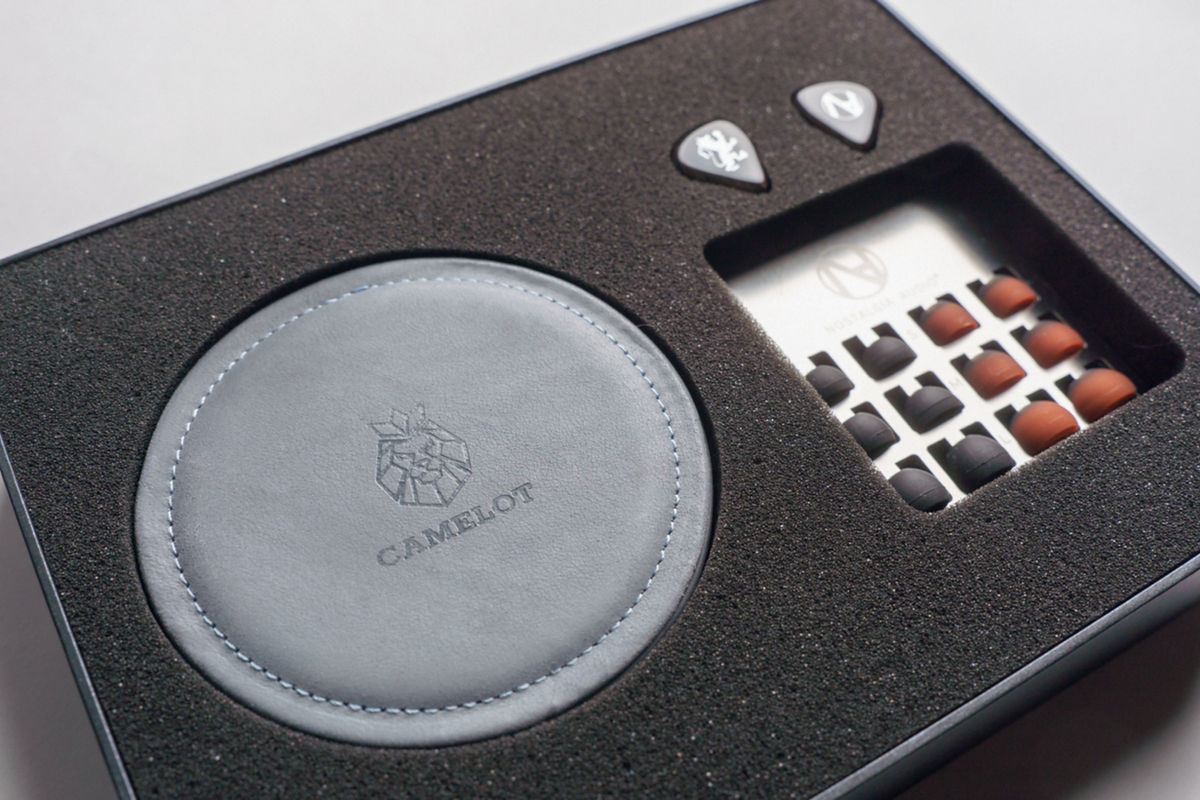

- Camelot hand-crafted leather case
- Dekoni Washable Memory Foam
- Symbio W Memory Foam & Silicone Hybrid Ear Tips - S, M, L
Story of Camelot
Camelot comes from one of the greatest mythology in Britannia, the legendary King Arthur. King Arthur was a legendary King who led the defense of Britain against Saxon invaders in 5-6 centuries. There are so many romantic and magnificent stories about him, such as the sword Excalibur, his most trusted subordinate The knights of the Round-Table, and also The Holy Grail that was written on the Matter of Britain. Camelot is The castle where King Arthur lived and also the place where the round-table is located.
