Palavox Steel Heart

STEEL HEART

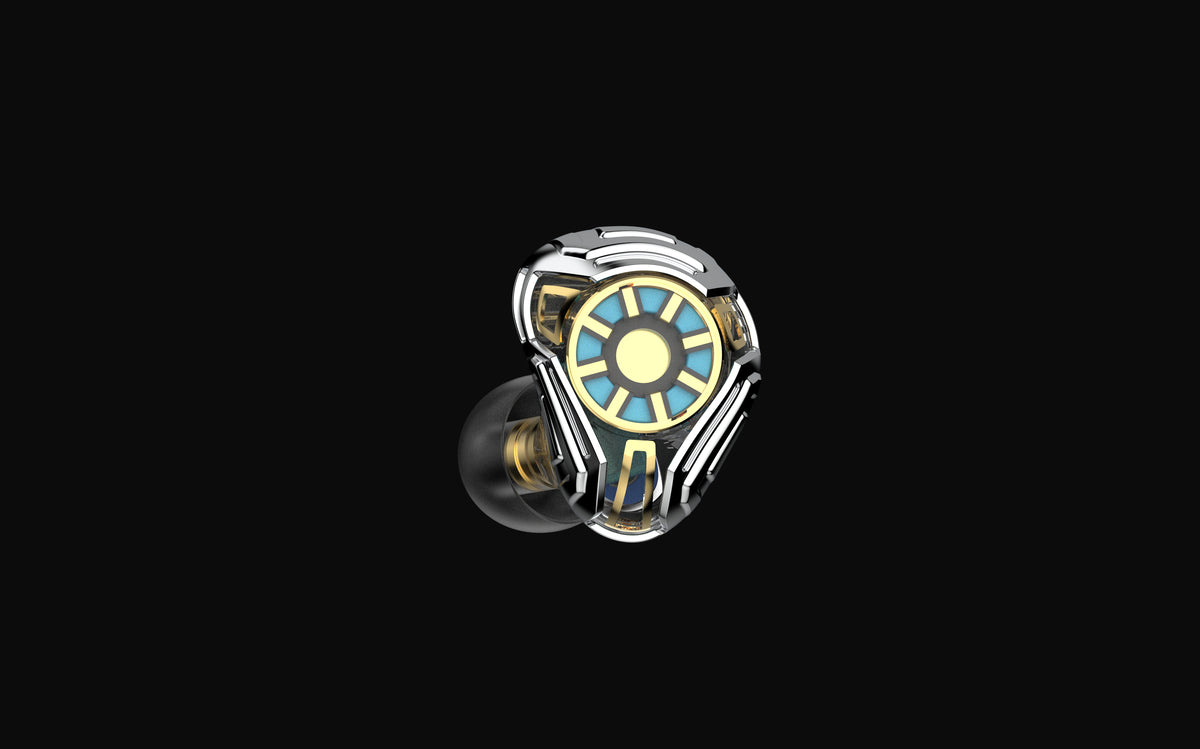

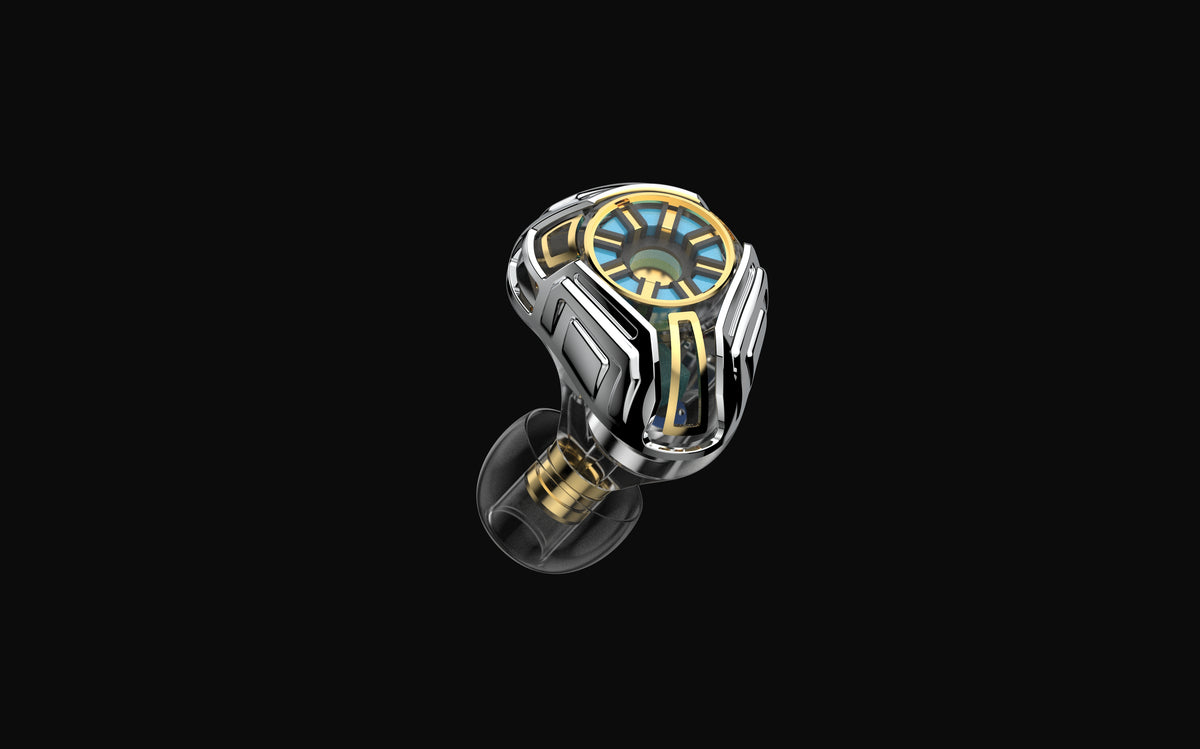

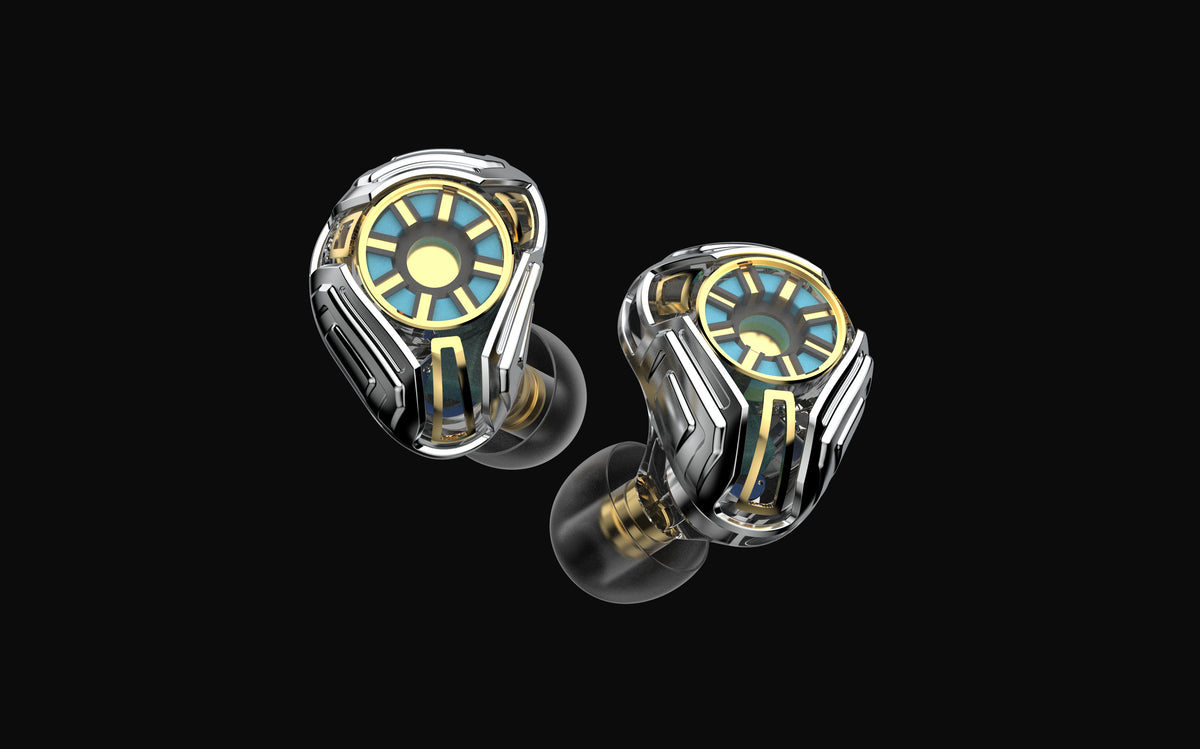

The concept of Steel Heart originates from future technology, featuring a mechanical core adorned with miniature reactors. The headphones with powerful drivers and a shell made of resin encased in metal, combining strength, mechanical aesthetics, and a futuristic feel.

The Shell

- Cyberpunk-inspired rugged mechanical design

- CNC-machined 6061 aluminum alloy with electroplating

- 16K high-precision resin-printed chamber with hand-painted finish

- Sapphire glass cover plate

- Hand-painted glowing reactor effect

- Gold-plated decorative ring and sound outlet nozzle

The Drivers

7 Drivers 3 Hybrids 5 Crossover

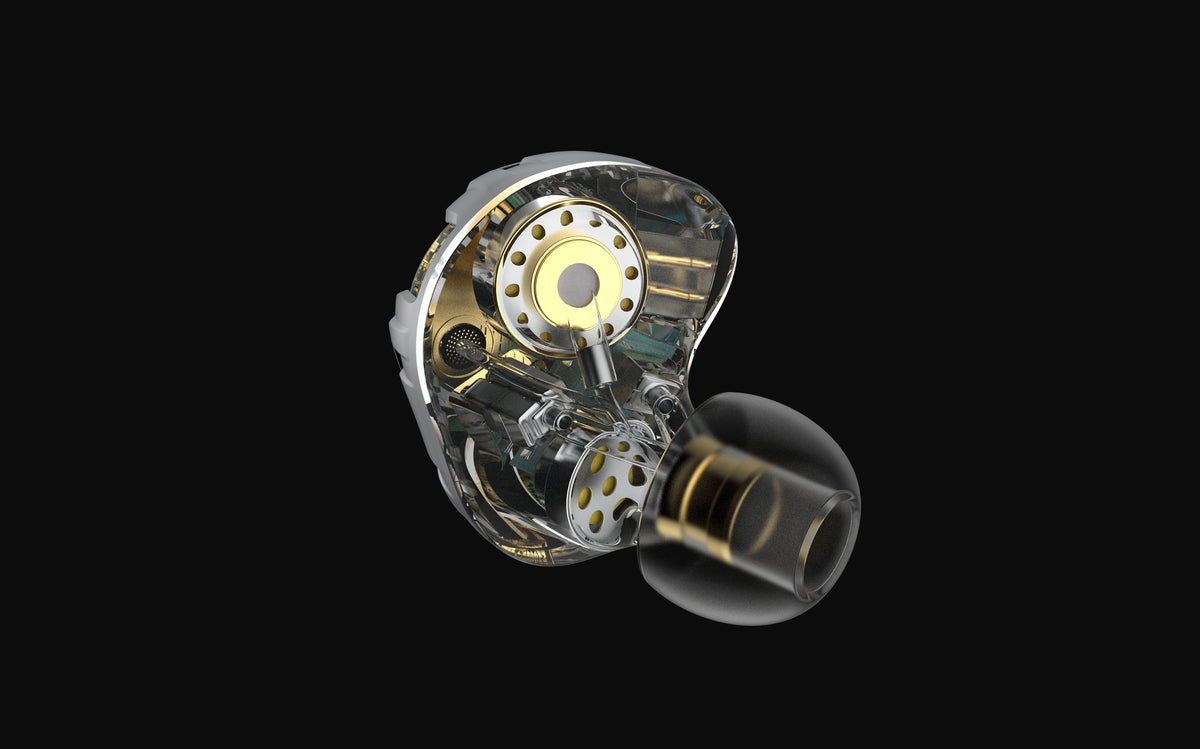

- Low-frequency: 10mm PU/LCP + 6mm PEEK coaxial low-frequency dynamic driver. (Three different diaphragms are used in the same cavity, with coaxial output. The 10mm diaphragm is placed at the back and emits sound in reverse, making the low frequency more solid and powerful)

- Mid-frequency: 8mm DLC dynamic driver. (Low distortion, large dynamic range, rich details)

- High-frequency: Dual micro planars. (Enhances the brightness of high frequencies)

- Ultra-high frequency: Dual EST drivers (Enhances resolution and clarity)

The MD Design

- Ultra-transparent 16K ultra-high precision 3D printed cavity

- Unique manifold technology, effectively reducing mutual interference among each unit and flavor errors

- Semi-open rear cavity venting holes, providing more transparent and natural low-frequency sound

- Front cavity venting hole technology (enhancing wearing comfort)

The Cable

- Four cores of gold, silver, copper and palladium alloy wire

- Mechanical armor style design, five-axis CNC aluminum alloy hardware components

- Cold enamel coloring process

- 4.4 balance plug

- 0.78 double-pin connector

Specification

- Speaker: 7 divers each side

- Sensitivity: 102dB/mW at 1kHz

- Impedance: 14.5Ω

- Frequency response range: 5Hz - 40KHz

Packing List

- IEM *1

- Storage case *1

- Cable *1

- Silicone plug storage plate *1

- Silicone sleeve *9 pairs
